Network Architecture Guide

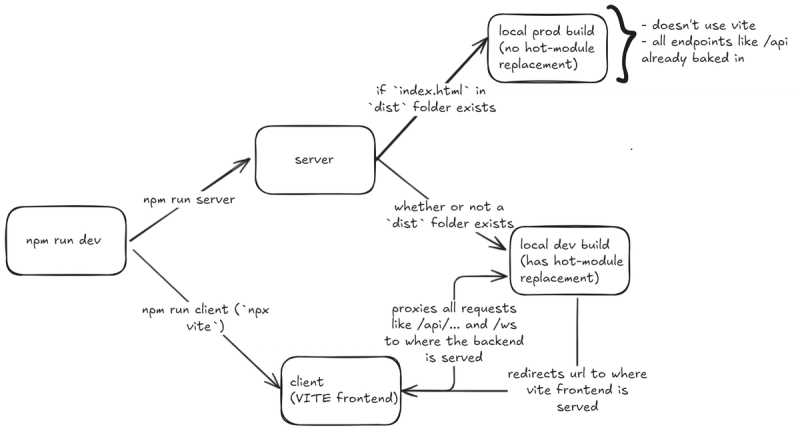

interaction between the front and backend

This document explains how networking works in this repo, why the project uses two ports in development, how HOST affects each server, and why desktop and mobile can behave differently.

High-Level Model

The app has two different runtime shapes:

Development mode
- A backend server runs on SERVER_PORT (default 3001)
- A Vite frontend dev server runs on VITE_PORT (default 5173)
- The browser loads the frontend from Vite
- Vite proxies API and WebSocket traffic back to the backend
Built or production-like mode
- Only the backend server is required
- The backend serves the built frontend from dist/
- API, frontend, and WebSockets all come from the same origin

Where the Networking Config Comes From

`.env`

It's sourced from the .env file in the project root. How it should be structured is documented in .env.example. The important variables are:

SERVER_PORT=3001
VITE_PORT=5173
HOST=0.0.0.0

Effective precedence

In practice, the order for the above variables is:

Explicit CLI options or shell environment
.env
Hardcoded defaults in the code

Examples:

Backend SERVER_PORT can be overridden by cloudcli --port 8080
Backend HOST falls back to 0.0.0.0
Frontend VITE_PORT falls back to 5173

What `HOST` Means

HOST controls which network interface a server binds to.

Common values:

127.0.0.1 or localhost or ::1
- Bind only to localhost
- Only the same machine can connect
0.0.0.0
- Bind to all local interfaces
- Other devices on the same network can connect using your machine's IP

Important distinction:

0.0.0.0 is a bind address, not a browser address
Clients never browse to http://0.0.0.0:3001
Clients browse to a real address such as http://localhost:3001 or http://10.41.126.107:3001

Backend Server Architecture

The backend lives in server/index.js.

It creates:

An Express app
A shared HTTP server
A WebSocket server attached to that same HTTP server

Responsibilities:

Mount /api/* routes
Authenticate API requests
Accept WebSocket connections
Route WebSockets by path
Serve public/
Serve dist/ when a build exists
Redirect frontend requests to Vite during dev when no build exists

WebSocket Endpoints

The backend exposes two main WebSocket paths on the backend port:

/ws
- chat/session realtime channel
/shell
- terminal/shell realtime channel

The WebSocket server is attached to the same backend HTTP server, so these are not separate ports.

Frontend Dev Server Architecture

The frontend dev server is configured in vite.config.js.

It reads:

HOST
SERVER_PORT
VITE_PORT

Proxy behavior

In dev, Vite proxies:

/api -> backend
/ws -> backend WebSocket server
/shell -> backend WebSocket server

The proxy target uses:

localhost when HOST=0.0.0.0 or any loopback address.
otherwise the specific HOST

If the page is loaded from `:5173` or any `VITE_PORT`

Browser sends /api/*, /ws, and /shell to :5173
Vite receives them
Vite proxies them to the backend on :3001

If the page is loaded from `:3001`

Browser sends /api/*, /ws, and /shell directly to :3001
No Vite proxy is involved

What happens when you open `http://localhost:3001`

The backend checks whether dist/index.html exists.

If it exists, the backend serves the built app directly
If it does not exist, the backend redirects the browser to the Vite dev server on VITE_PORT

Notes

What happens when the `HOST` is set to `0.0.0.0`

When Vite is bound to 0.0.0.0, it enumerates all local interfaces and prints connectable addresses for them.
